截面圖 Section	型號 Model	規格 Specificationn/φmm	單芯導體截面積 Each Crossec Areaφmm2	20℃時導體最大直流電阻 Conductor'sMaxDCResistanceat20℃Q/km	70℃時最小絕緣電阻 MinimumInsulating Resistanceat70℃MQ/km	屏蔽密度 Shield Density %	標稱外徑 Nom.0.D φmm
	DML220	20/0.12+SP+60/0.12銅絲繞包	0.22	92.3	0.015	≥95%	6.0
	DML380	34/0.12+發泡PE+SP+16x8/0.10銅絲編織	0.38	52.3	0.013	≥95%	7.0
	DML750	(2x0.5+6x7/0.10)+實心PE+SP+16x8/0.10銅絲編織	0.75	26	0.01	≥95%	7.3
	DBT1100	[2x(7x7/0.12)]+SP+16x8/0.10銅絲編織+睛綸絲編織	1.1	26	0.01	≥95%	7.5

●線芯導體為4N無氧銅絞束而成，抗氧化，訊號導通率高，衰減小。

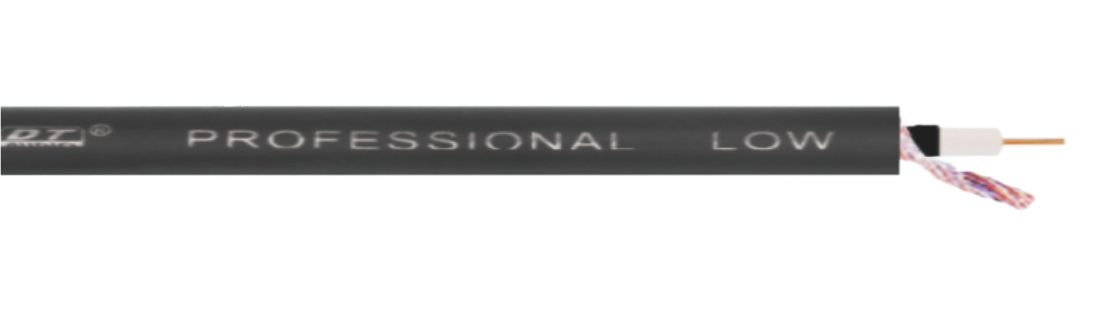

●此型號為電吉他電纜的標準形式。此型號線適用傳輸?shù)皖l小信號用線連接，俗稱吉他線，搭配芯線微泡技術來實現完美的屏蔽效果，使線材完美的達到低衰 減，降噪音，增加音源的動態范圍，具有極高的音樂解析度，外護套為彈性體聚氯乙烯及高檔透明彈性料，手感柔軟，色彩鮮艷，耐扭曲，不脆化。(低溫  沖擊脆化溫度可達-30℃)

●The Cable has stranded 4Noxygen-free copperas the coreconductor,which resistsoxidation,ensures high transmission rate andlowattenuation.

●Such cables are usedforthetransmission of iow frequency signals,when they are usuall called electric guitar cables Itwilbe very perfecto match with foamed

technology and the cable withlow atenuation,reduce noise,increase the dynamicrange of udio and music with high resolution.The elasticprotectivejackets are made

of polyvinylchloride and high-grade transparent elastic materialirghtolors which are sof,distortion endure,and hard to go bitle(britletemperature:-30℃)
