截面圖 Section | 型號 Model | 規格 Specificationn/φmm | 單芯導體 截面積 EachCrossec Areaφmm | 20℃時導體最大直流電阻 Conductor'sMaxDC Resistanceat20℃ Q/km | 70℃時最小絕緣電阻 MinimumInsulating Resistanceat70℃M Q/km | 屏蔽密度 Shield Density % | 標稱外徑 Nom.0.D φmm |
| DNA124 | 4×16/0.10+96/0.10錫絲編織 | 0.12 | 158 | 0.017 | >90 | 5.5 |
DNA224 | 4x(26/0.10+2/0.10A)+128/0.10錫絲編織 | 0.22 | 92.3 | 0.015 | >90 | 7.0 | |
DNA314 | 4x(37/0.10+3/0.10A)+144/0.10錫絲編織 | 0.31 | 69.2 | 0.014 | >90 | 7.5 | |
DNA384 | 4x(45/0.10+3/0.10A)+144/0.10 錫絲編織 | 0.38 | 55.0 | 0.013 | >90 | 8.0 | |
DNA318 | 8x(37/0.10+3/0.10A)+160/0.10錫絲編織 | 0.31 | 69.2 | 0.014 | >90 | 8.0 |
●線芯導體為4N無氧銅絞束而成，抗氧化，訊號導通率高，衰減小。
●此型號線適用傳輸?shù)皖l小信號用線連接，俗稱話筒線，外護套為彈性體聚氯乙烯，手感柔軟，色彩鮮艷，耐扭曲，不脆化。(低溫沖擊脆化溫度可達-30℃)

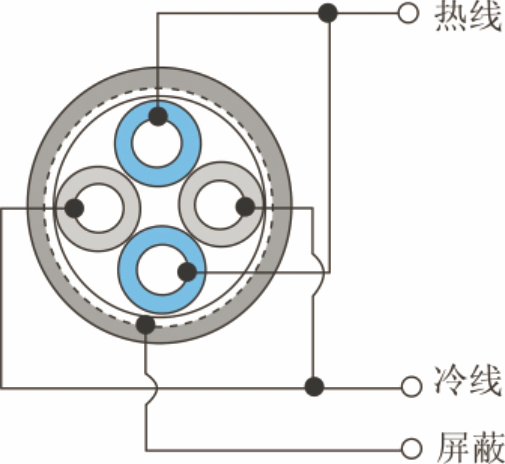

●此型號的四芯結構型線可用二二對角兩芯相接(見圖示)法連接，此時其屏蔽噪音效果更佳，,測定噪聲電并只有兩芯麥克風電纜的1/10。
●The Cable has stranded 4Noxygen-fre copper wire asthe core conductor,which resists oxidation,ensures high transmision rate and low attenuation.
●Such cable can be usedforthe transmission of lowfrequency signals,when they are usuall called microphone cables.The protective sheaths are made ofelastic polyvinyl(PVC)in bright colors which are soft,distortion endure,and hard to go brittle.(brittle temperature:-30℃)
othefour cores are aranged the way which the graph below shows,henthey can be best shieided fromnoises.Noise calibrationofsuch cablesis only 110 of hat
of two-core microphone cables.
